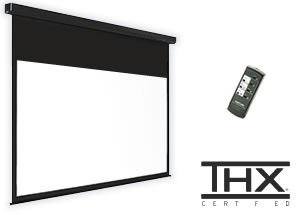

E2S Overview
- THX Certified Acoustically Transparent Screen
- 16:9 Wide 90",
100", 110" and 120" width available
- Motorized winder with IR remote commander
- IR remote Extender
(Option)
- 12V Trigger Interface (Option)
|
| Audio Spec |
|
Optical Spec |
- Compensation EQ not required.
- Excellent transparent capability
up to 20kHz for next generation HD Surround formats.
|
|
- Ultimate flat gain
- 0.76 Peak Gain
- 0.58 @ 85 degree
|
| Screen
Material |
|
Mechanism |
- Original woven structure to reduce Pix-edge and Moire.
- Use of 80% recycled material without Vinyl chloride for Eco.
- Original blended pigments for ultimate flatness and wide viewing
angle.
- Stainless Sputtering layer shuts leaked and reflected light out
for better contrast and sharper picture.
Stainless
Sputtering :
Adhesion is achieved wholly by Physical energy at the molecular and atomic levels.
|
|
- High quality mechanism co-designed with Onkyo.
- PCB manufactured by Onkyo.
- Precise programmable stops by remote control.
- All Aluminum seamless body.
- High rigity with slim design.
- Colored matte black to
reduce lighting reflection.
|
THX and the THX logo are trademarks of THX Ltd. which may be registered
in some jurisdictions. All rights reserved. |
|
|
|
